Kollmorgen E33NCHA-LNN-NS-00 Production Description

Based on the information available online and characteristics of similar Kollmorgen products, here's a possible production process for the E33NCHA-LNN-NS-00 stepper motor:

Function:

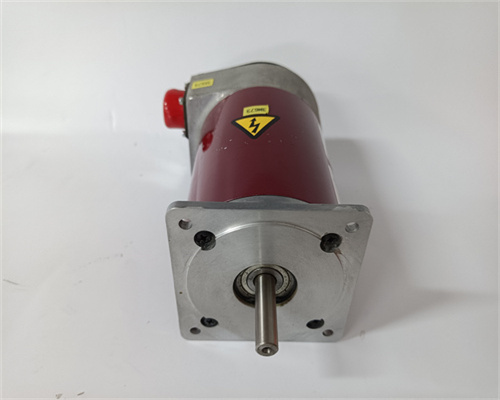

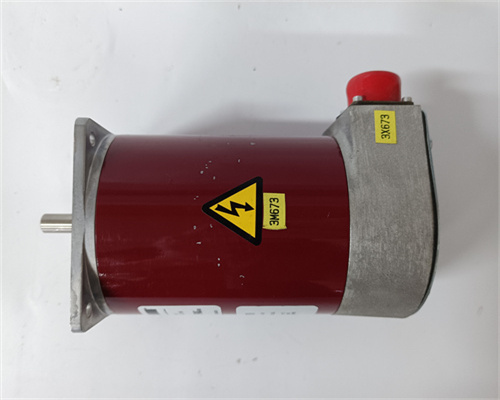

The Kollmorgen E33NCHA-LNN-NS-00 is a bipolar stepper motor with a smooth shaft, SIGMAX construction, and a standard NEMA 34 flange. Stepper motors convert digital electrical pulses into precise, incremental rotations. Here's a breakdown of its potential functionalities:

  • Rotational Movement: The motor rotates in discrete steps based on the number of pulses received and the motor's internal configuration.
  • Precise Positioning: By controlling the sequence and timing of the electrical pulses, the motor shaft can be positioned at specific angular positions.
  • Torque Control: The motor can generate torque (rotational force) to overcome loads and achieve desired acceleration.  The E33NCHA-LNN-NS-00 likely offers a holding torque of 6.64 Nm (Newton meters).

Possible Production Process:

  1. Component Sourcing: Kollmorgen likely sources various components for the E33NCHA-LNN-NS-00:

    • Steel laminations for the stator (stationary part) to create the magnetic field.
    • Copper windings for the stator, precisely wound to generate the magnetic field when energized.
    • Permanent magnets for the rotor (rotating part) to interact with the stator's magnetic field and produce torque.
    • Shaft made of high-quality steel for smooth rotation and durability.
    • Bearings to support the shaft and enable smooth rotation with minimal friction.
    • Encoder disk (optional): If the motor includes an encoder, it provides feedback on the motor's rotational position.
    • Connection wires and terminals for electrical connections.
    • Housing components for mechanical protection and heat dissipation.

  2. Stator Assembly: The steel laminations are stacked and bonded together to form the stator core. The copper windings are precisely wound around the stator core, following specific patterns to create the desired magnetic field.

  3. Rotor Assembly: The permanent magnets are mounted on the rotor shaft in a specific configuration to interact with the stator's magnetic field and generate torque. The bearings are pressed onto the shaft to provide smooth rotation.

  4. Motor Assembly: The stator and rotor are assembled together, ensuring proper alignment and air gap between them. The encoder disk (if applicable) is mounted on the shaft.

  5. Electrical Testing: The motor undergoes electrical testing to verify its winding resistance, inductance, and back EMF (electromotive force) to ensure proper functionality.

  6. Performance Testing: The motor's torque, speed, and holding power are measured on a dynamometer (a machine for testing motors) to confirm it meets performance specifications.

  7. Quality Control: The motor undergoes rigorous quality control checks to ensure dimensional accuracy, mechanical integrity, and absence of defects.

  8. Cleaning and Lubrication: The motor is cleaned and lubricated with appropriate grease or oil to protect components and ensure smooth operation.

  9. Packaging and Shipping: Once all tests are passed, the E33NCHA-LNN-NS-00 is labeled according to regulations and securely packaged for shipment to distributors or end users.

Materials and Manufacturing Technology:

  • High-quality electrical steel for the stator laminations to ensure efficient magnetic field generation.
  • High-conductivity copper for the windings to minimize electrical losses and maximize torque output.
  • High-strength permanent magnets for creating a strong magnetic field and generating torque.
  • High-precision bearings for smooth rotation and minimal friction.
  • Automated manufacturing processes for consistent quality and repeatability.
  • Computer-aided design (CAD) software for motor design and optimization.

Finding More Specific Information:

Obtaining extremely detailed information about the specific production process for the Kollmorgen E33NCHA-LNN-NS-00 might be challenging due to proprietary manufacturing practices. Here are some suggestions for further exploration:

  • Kollmorgen Resources:
    • Search the Kollmorgen website for product manuals or data sheets related to the E33NCHA-LNN-NS-00 stepper motor. These resources might provide details about its specifications, performance curves, wiring diagrams, and compatibility with Kollmorgen drives.
    • Kollmorgen might offer application notes or technical documents that discuss stepper motor selection, control principles, and integration into motion control systems.
  • Contact Kollmorgen Directly: Reach out to Kollmorgen's customer support or relevant department. They might be able to share general information about the E33NCHA-LNN-NS-00's construction and functionalities but may not disclose confidential details about the production process.
